不同的用途与简洁：Purpose and introduction

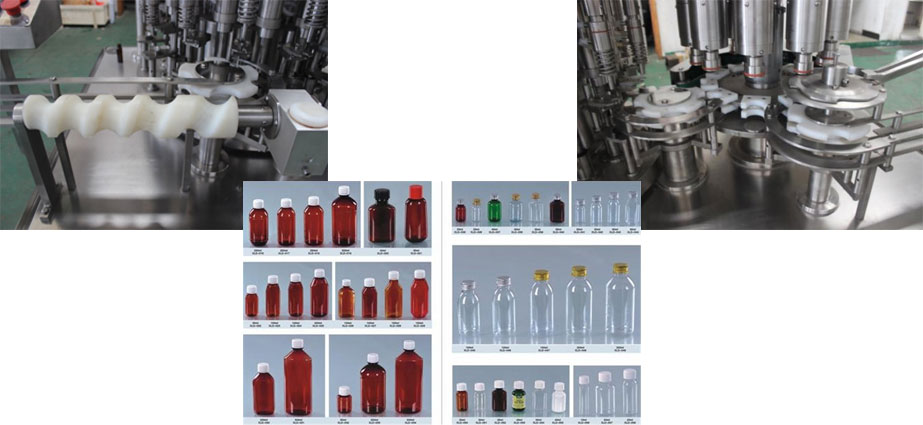

机器适广泛用于于对30-500ML产品玻璃钢瓶、塑胶片瓶的装灌密封。采用了往来账户往来式火塞开展装灌，电磁振动器振动送盖，还是可能轧盖(材料式)或旋盖(塑胶片盖)密封，还是可能和左右侧的生產工步主设备连接 构成的生產线，另外还是可能采购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特质：characteristic

装量准确度，杜尽滴漏问题。缺瓶不分装。 变频器调节。 活跃表明计算好处。 服务器均按GMP追求设计的概念。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术工艺性能/technical parameters：

型号 model	NQGX30-500
适用于技术参数Cutting dimension	30-500ml
出产地的能力Production capacity	80-200瓶/分（罐/半个小时）80-200 bottles/min (cans/min)
分装准确度 Filling accuracy	≤±1%
电原 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械装备净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
