的主要用途是什么与介简/Brief Introduction：

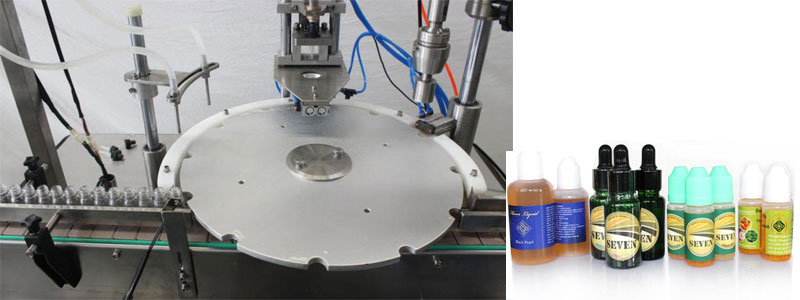

超声波焊接机应适于2-30ML所有质材的半圆扁形塑料管或夹层玻璃瓶子的眼麻醉药分装.超声波焊接机由高计算精度凸轮机构轴测量范围单位展示 测量范围等分盘精准位置上塞上盖;加快度凸轮机构轴传送展示 旋盖头的伸降;恒扭力旋盖;运动泵压力容器检验分装;接触屏调控.无瓶不分装,不放内塞,外盖.具精准位置精度,传送平衡,保护措施小盖,压力容器检验准.操作流程简便等特征。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

基本特征/Characteristic：

◆微新电脑设计、装量小于、工作简单。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆机箱钻速可来无级变速变频器调压。the mainframe running speed is stepless frequency conversion.◆产出量量系统自动化学发光法把控好。the product quantity can be controlled. ◆种错误提示卡特点(如低风压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆会自動熄火能力，对某一轨道、出现了不间断无包装、无内塞情況可会自動熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

系统参数值/Main Technical Parameters：

适用于标准Filling Volume	2-30ml
生产方式实力Productivity	30-60瓶/分  70-100瓶/分30-60bo🌟ttles/min    70-100bottles/min
装罐精度等级Filling Precision	≤±1%
电原 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动的上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
工具净含量Weight	550 kg
性能寸尺Dimension	1800*1000*1500mm
