的用途与介绍/Brief Introduction：

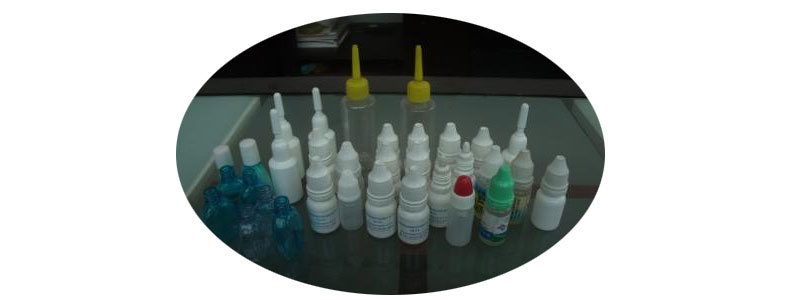

远程服务器应用来2-30ML各种各样不锈钢材质的半圆形扁形PVC或玻璃纸瓶的眼药粉装罐线、电子为了满足电子时代发展的需求，烟油等小标准容量装罐线.远程服务器由高导致精度气缸测量范围培训机构能提供数据测量范围等分盘追踪标记上塞上盖;车速度气缸转动能提供数据旋盖头的调节;恒功率旋盖;颤动泵的计量检验装罐线;摸屏操纵.无瓶不装罐线,要加内塞,外盖.具追踪标记透彻,转动平静,养护玻璃瓶盖,的计量检验准.运营简短等的优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优势/Characteristic：

◆微手提电脑调节、装量精确度高、基本操作快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器发动机转速可采取无极直流变频控速。the mainframe running speed is stepless frequency conversion.◆加工量自功一定量操控。the product quantity can be controlled. ◆各种各样报警提示信息功能模块(如低汽压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆手动停止效果，对指定轮轨出現陆续无分装、无内塞前提可手动停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

水平性能指标/Main Technical Parameters：

可用技术参数Filling Volume	2-30ml
产量工作能力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装灌可靠性强，精密度Filling Precision	≤±1%
电源适配器 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
器机重量Weight	550 kg
形壮尺寸大小Dimension	1800*1000*1500mm
