妙用与简单/Purpose and introduction

该制作线由理瓶机(上瓶台)、多普勒彩超波洗瓶机，装罐(旋盖)加塞机，轧盖机，贴标签机等机械包含On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

显著特点/characteristic：

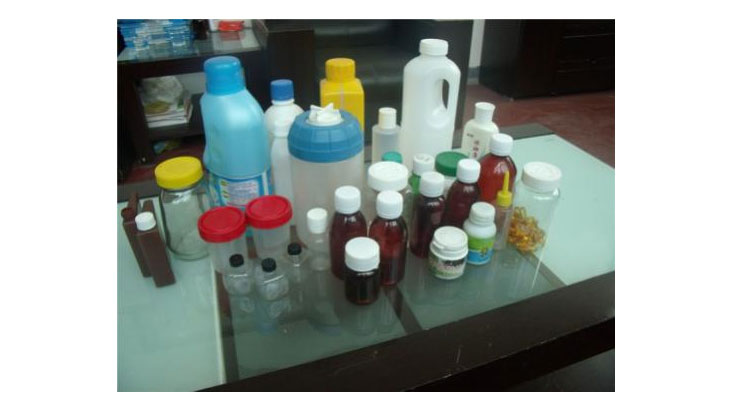

该加工线适当于 30-500ml车辆系列车辆的灌装设备加塞粘口，换掉一个规格参数塑胶模具后，既适当于塑胶瓶，也适当于窗户玻璃罐。享有应用区域广泛的，调正快捷的亮点。整线加工特性；适玻璃瓶强弱样式，木块消费黏性而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

水平参数值/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶洁净间度Washing bottle cleanliness(%)	> 99
装量数据误差The load error(%)	0-2
上塞合理率Plug on the percent of pass(%)	> 98
轧盖通过率率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
